Specifications
- Prime Power: 500 kW
- Engine: Volvo TAD1672GE, EPA Tier 4 Final, EGR + SCR

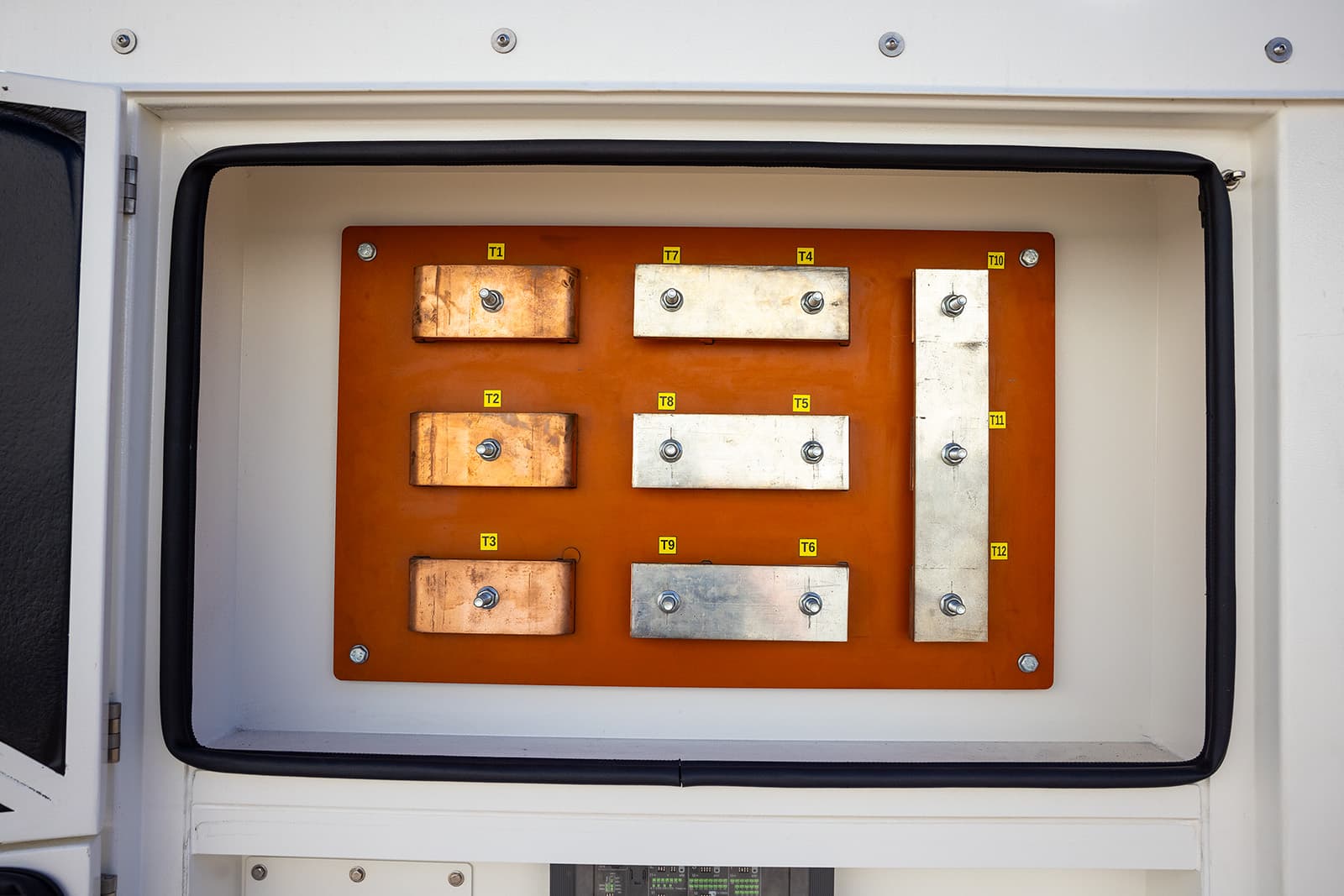

- Voltage: 480/277V or 208/120V, 3-Phase Via 2-Position Link Board
- Amperage: 1,735A @ 208V / 752A @ 480V
- Alternator: Stamford HCI 534E, 12-Lead, 4-Pole, AVR + PMG Boost, UL Certified

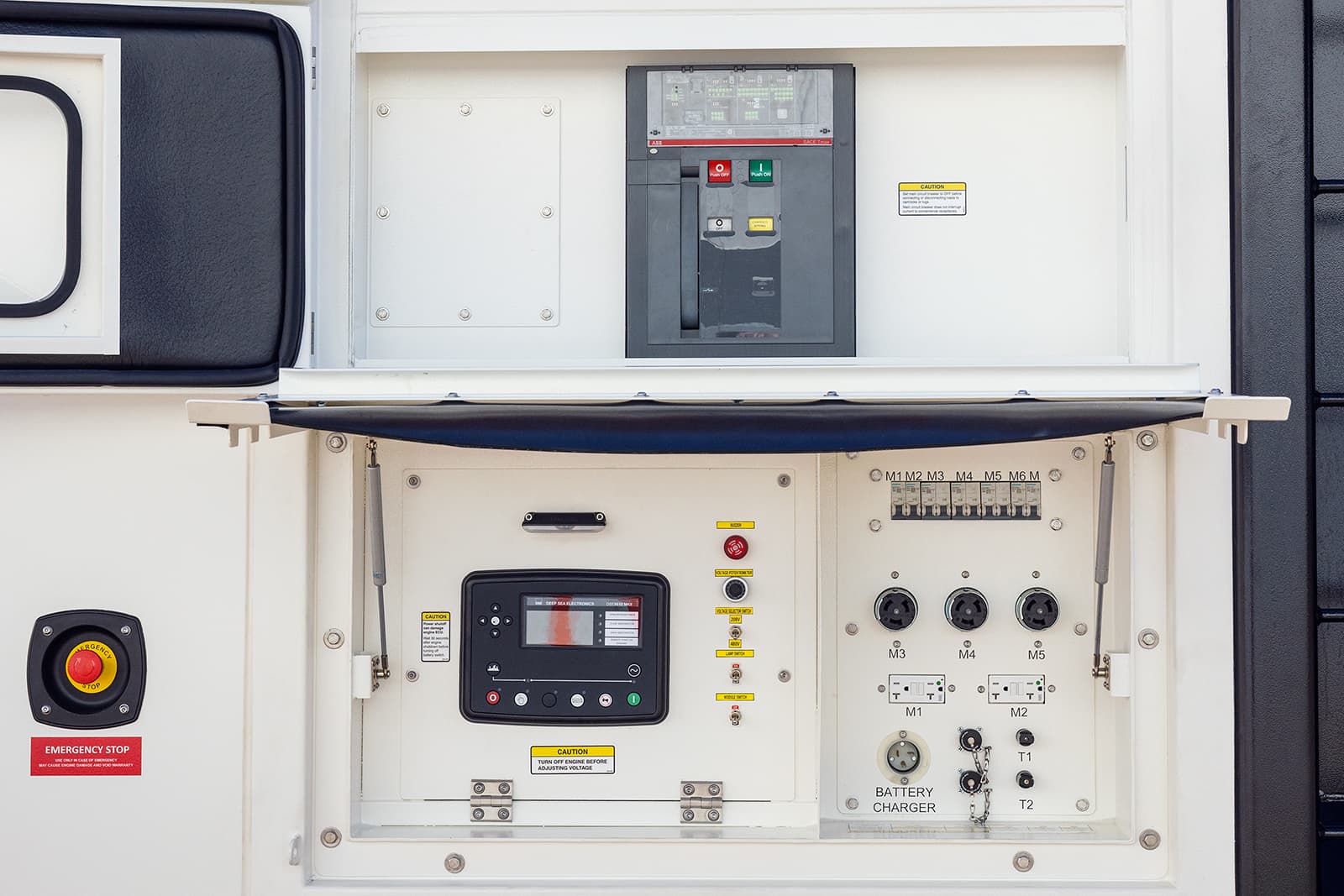

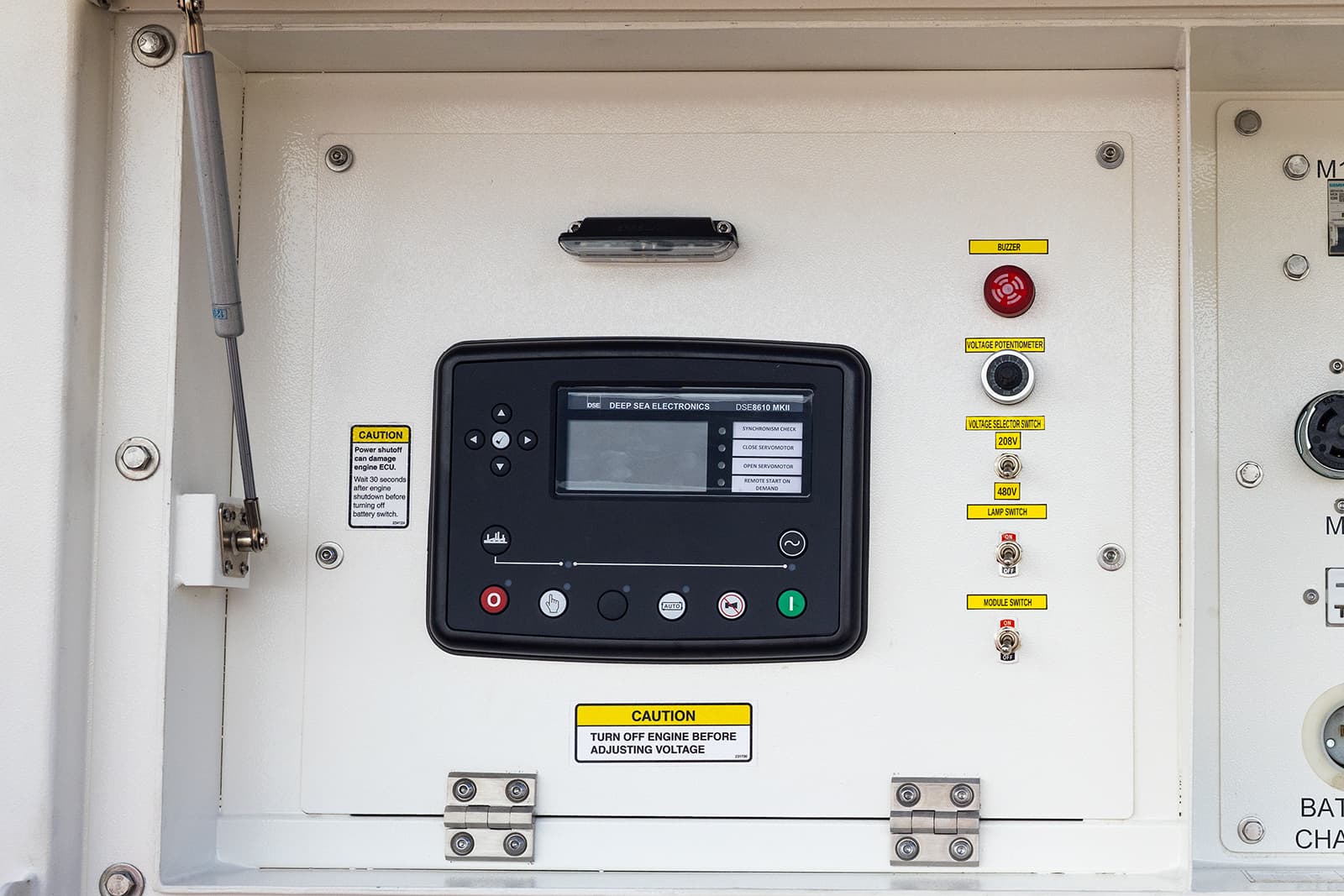

- Controller: Deep Sea 7320MKII
- Main Breaker: UL Listed ABB With Auxiliary Contacts And Shunt Trip
- Fuel Tank: 600-Gallon, 10-Gauge Double-Wall Skid-Base Tank With 110% Containment
- DEF Tank: 42 gallons

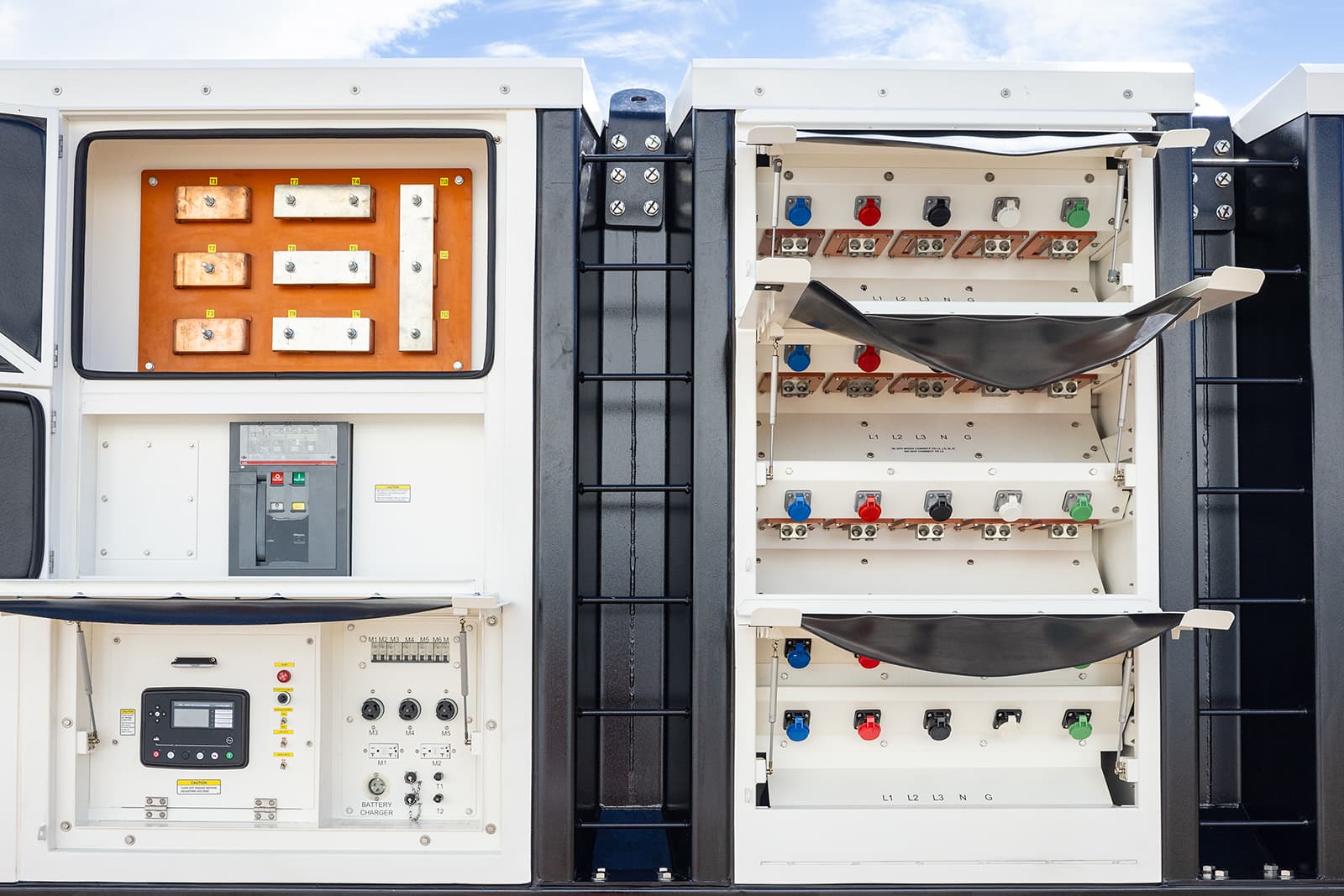

Rental Distribution Package
- Brass lugs for stripped leads – 3 rows
- (3) CS6369 50A, 125/250V receptacles
- (2) Leviton 20A, 125V NEMA 5-20R receptacles with dust covers
- (2) HBL5278C 15A, 125V inlets

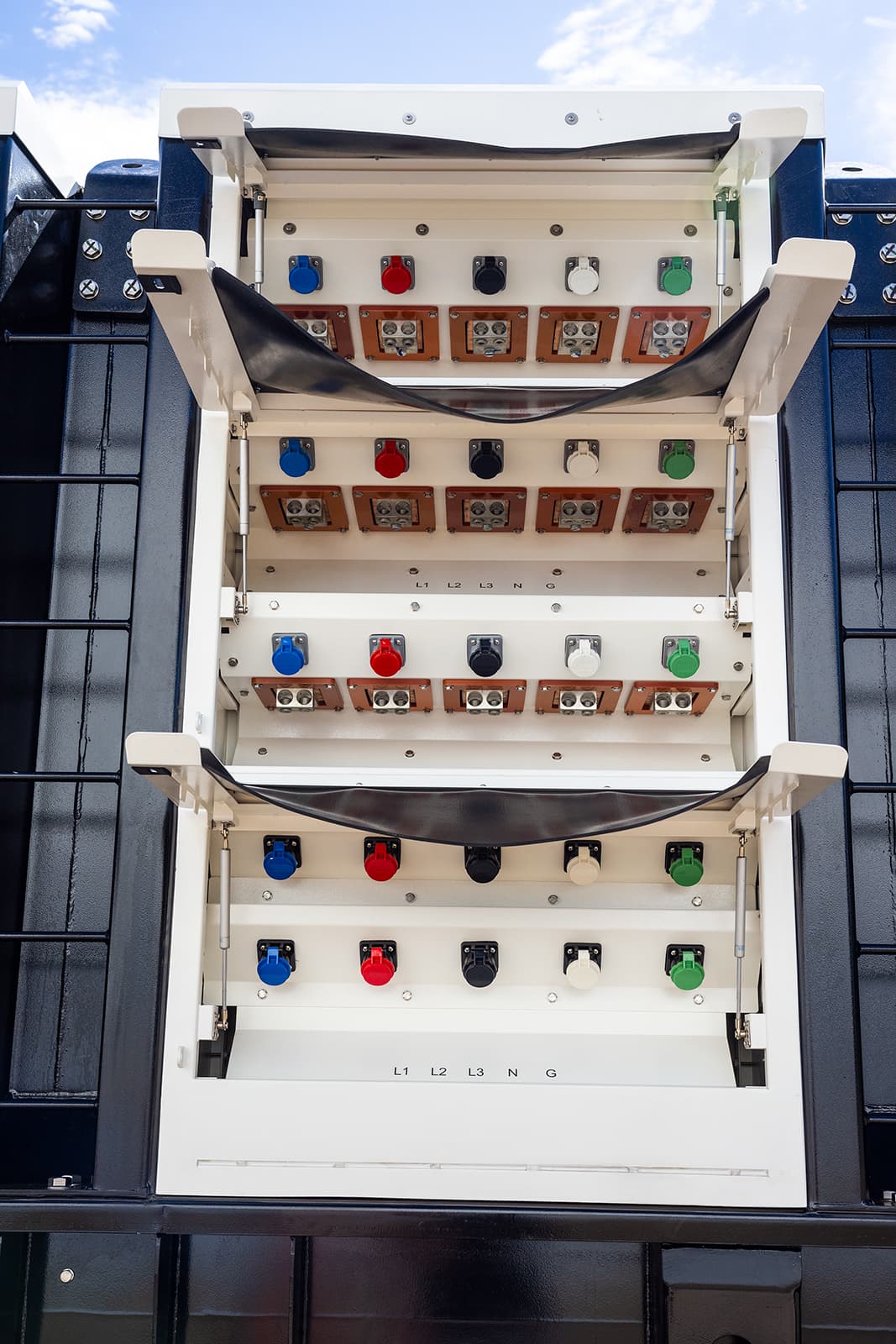

- 5 rows of color-coded Camlock plugs & sockets
Trailer Package
- Triple Leaf-Spring Axles With Electric Brakes
- DOT-Approved LED Tail, Side, Brake & Directional Lights
- Transportation Tie-Downs
- Safety Chains With Spring-Loaded Hooks
- 3″ Pintle Ring
- Standard 7-Pin Round Connector
Warranty: Wanco Standard 2-Year / 2,000-Hour Warranty
