When one generator is not enough, multiple units are often run in parallel to support larger kW demand, improve redundancy, and allow maintenance on one unit without a total outage. In these installations, stable power is not produced by “more engines.” Stable power is produced when the electrical and mechanical controls are coordinated so that each machine carries an appropriate share of real power (kW) and reactive power (kVAR). If the units are not coordinated correctly, nuisance trips will be triggered, the circulating current will be disrupted, and one unit can overheat while another remains lightly loaded. Users can achieve reliable load distribution by correctly connecting the generators in parallel and employing load-sharing controllers that maintain a balanced, stable operation to prevent overload.
System Goals Behind Industrial Generator Load Distribution
The primary goal of load distribution is to ensure that system frequency and voltage remain within acceptable limits during step loads, motor starting, and sudden load rejection. A second goal is often to maintain equal loading by percent rating, so that the wear is evenly distributed across generators and maintenance intervals stay predictable for each machine. Finally, generator users will want to control fuel efficiency and emissions by staging units on and off to avoid lightly loaded machines as well as overloaded units.
When using multiple generators, two different “loads” must be managed at the same time. Real power (kW) is the portion that does useful work, such as turning motors and heating elements. Reactive power (kVAR) is the portion that supports magnetic fields in motors and transformers and is tied to the power factor. In parallel generators, kW sharing and kVAR sharing are controlled by different subsystems, so both must be addressed, or uneven sharing will be seen across the units.
Syncing Systems to Connect Parallel Generators
In order to connect multiple generators, users must first close the breaker. Then, synchronism needs to be achieved before connecting the units to a common bus – a node in the combined power system where one generator is connected, holding active power and voltage magnitude constant while reactive power and voltage angle are calculated. These critical factors should line up so that excessive inrush current is not created when the two generators connect.
This system alignment is commonly handled by a synchronizer and check-sync protection. When a dead bus is used, the first generator is started and brought to rated speed and voltage, then allowed to close to an unenergized or “dead” bus. When a live bus is used, the incoming set is matched to an already energized bus that is connected to a power source and carrying a live current.
Several prerequisites are usually verified during the final testing phase to ensure that all generator systems are operating correctly. This includes testing:
- Correct phase rotation and correct CT/PT polarity in metering and protection circuits
- AVR settings that allow stable voltage regulation without hunting
- Governor stability that allows a steady frequency response under load steps
- Breaker interlocks and permissives that prevent out-of-sync closure
If any of these items are missed, load-sharing problems are often blamed, even though basic paralleling conditions were not initially satisfied.
kW Sharing Methods: Droop and Isochronous Control
Real power sharing between generators is primarily governed by engine speed control and fuel rate. Two mainstream approaches are used to achieve this outcome: droop control and isochronous load sharing. In droop, a generator’s frequency is allowed to decrease slightly as kW load increases. Each machine is set with a similar droop slope so that kW is shared naturally as load changes. In isochronous load sharing, frequency is held constant by a control system that actively trims each governor command so that kW is divided as intended.
| Control approach | Typical behavior | Common application fit |
|---|---|---|
| Speed droop | A small frequency change is permitted as the load changes | Utility paralleling or simpler island systems where frequency tolerance is acceptable |
| Isochronous load sharing | Constant frequency is maintained while kW is actively balanced | Islanded sites and critical loads where tight frequency regulation is desired |
Mixed behavior can also be used. A common configuration is “one isochronous, others droop.” This means that one unit is designated as the frequency master, and the remaining units are allowed to follow a droop characteristic, with trimming applied to keep kW balanced. In a modern power management system, kW sharing is typically calculated from breaker kW measurements, engine limits, and ramp rates so that load steps are accepted smoothly.
Mismatched droop settings, aggressive governor gains, slow actuator response, or incorrect load measurement scaling commonly cause unstable kW sharing. Reverse power protection is often relied on to prevent an engine from being motored if fuel is reduced too far.
kVAR Sharing Methods: Voltage Droop and Cross Current
Reactive power sharing is managed by excitation control through the automatic voltage regulator (AVR). This means that output voltage and reactive power are modulated by controlling the DC supplied to the generator. While governors primarily control kW, AVRs primarily control kVAR. If AVRs are not coordinated, one unit can be forced to carry most of the reactive current, which often leads to overheating, poor power factor, and unstable bus voltage.
Several kVAR sharing methods are commonly applied:
- Voltage droop, where the generator voltage reference is reduced slightly as reactive current rises
- Cross-current compensation, where reactive current signals are shared, so circulating VARs are minimized
- VAR or power factor control, where a target kVAR or target power factor is regulated by the AVR
One key distinction is often missed during troubleshooting. kW sharing can appear “perfect” while kVAR sharing is poor, because different control loops are involved. When large motors, transformers, or UPS systems are present, reactive demand can move quickly, so AVR tuning and sensing accuracy are typically treated as primary stability items.
Power Management System Logic: Sequencing and Protection
When multiple machines are operated as parallel generators, a power management system (PMS) or generator paralleling controller is typically used to coordinate start/stop sequencing, synchronization, load sharing, and protective actions. If no central PMS is installed, standalone load-sharing generator modules can still be used, but achieving sequencing and protection coordination can become more difficult.
Several control functions are commonly applied to alleviate problems:
- Load add and load shed, where the generator count is adjusted as kW demand rises or falls
- Soft loading and unloading, where kW ramps are used to reduce mechanical stress and voltage flicker
- Spinning reserve management, where headroom is kept for the largest step load or motor start
- Priority load shedding, where noncritical feeders are dropped when capacity is exceeded
Protection is also integrated across generator units, so equipment damage is avoided, and unsafe operating states are blocked. Typical safeguarding functions include overcurrent, under/overvoltage, under/overfrequency, reverse power, overexcitation, loss of excitation, and synchronism-check. Breaker failure and bus differential protection can be added in larger switchgear lineups where fault-clearing speed is important.
Load-sharing performance is often shaped by system architecture. A common bus with individual generator breakers is typically used. Tie breakers between bus sections are often installed so that maintenance isolation can be achieved while power is maintained. Interlocking is used so that unintended backfeed paths are prevented.
Commissioning Checks: Load Bank Testing and Field Tuning
Stable power sharing is rarely achieved by nameplate settings alone. Field tuning is usually required because cable impedance, switchgear layout, sensor scaling, and real load behavior are not identical to lab conditions when running parallel generators. Commissioning and calibrating generators is typically performed in steps: single-set verification, synchronization verification, load acceptance tests, and multi-set sharing tests.
Load bank testing is commonly used to confirm rated kW output, steady-state voltage regulation, and frequency response. Resistive load is used to confirm real power capability, and inductive load is used to confirm reactive response and AVR behavior. In standby systems governed by common standards and manufacturer guidance, periodic exercise at a minimum load level is often recommended so wet stacking and low-temperature operation are reduced.
During testing, several indicators are typically monitored:
- kW split by percent rating across all running units
- kVAR split and bus power factor stability
- Frequency dip and recovery time after step loads
- Voltage dip and recovery under motor starting events
- Hunting, oscillation, or breaker chatter that indicates unstable control loops
When an imbalance is observed, corrections are usually applied in a structured order. Metering and CT polarity are verified first, then governor droop and isochronous trim are checked, then AVR droop or cross-current settings are validated, and then PMS ramp rates and limits are adjusted. This sequence is commonly used because a measurement error can mimic a control problem, and a reactive sharing problem can be misread as a kW sharing issue.
Turnkey Industries: Your One-Stop Shop for Multiple Generator Units
When planning parallel generator projects, matching voltage, frequency, kW capacity, and control options early makes generator selection easier and delivers smoother load sharing from day one. At Turnkey Industries, we offer:
- Pre-owned industrial generators sourced across multiple brands, sizes, and kW capacities
- Diesel and natural gas generator options based on site requirements

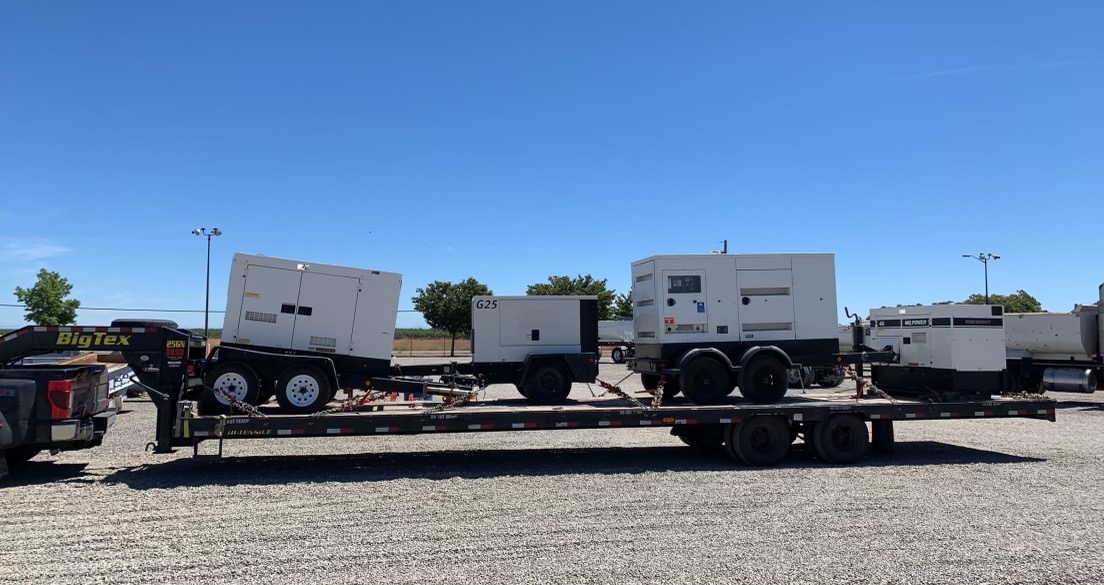

- Orders fulfilled across the United States and beyond with delivery coordination
