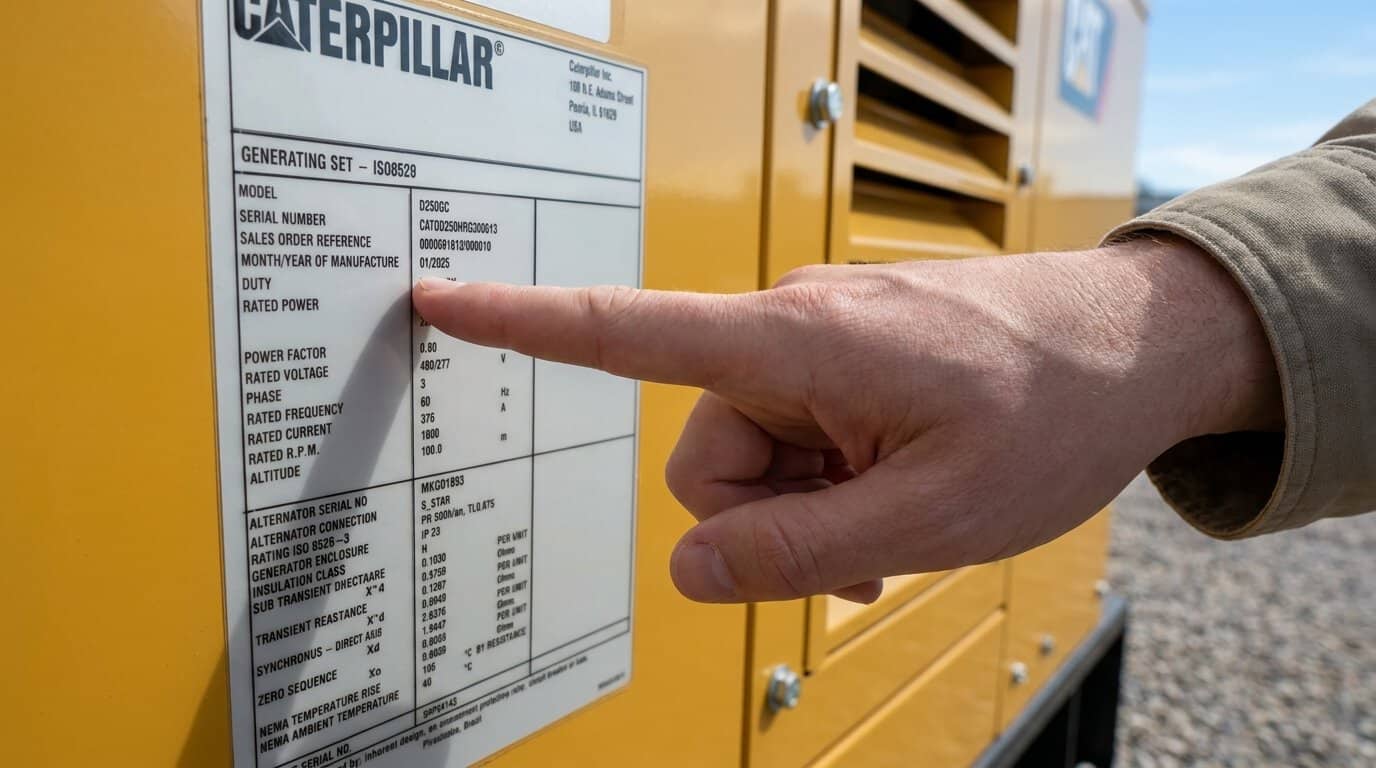

The nameplate on a diesel genset contains everything a technician, parts supplier, or service scheduler needs to work on the equipment correctly. It also gets ignored more often than any other piece of documentation on the unit. Facilities that call for service and can’t locate the model number or don’t know the difference between the standby and prime ratings on the plate end up in slower, more expensive service conversations — because the first ten minutes of a diagnostic or parts call are spent establishing information that’s been bolted to the genset since it was commissioned.
Reading a nameplate correctly takes about two minutes once you know what the fields mean. It’s the starting point for every generator repair call, every parts order, and every service history comparison. This article explains what each field represents and why some of them matter more than most operators realize.
Manufacturer, Model, and Serial Number: The Three Fields That Open Every Service Call
The manufacturer name establishes which dealer network, parts catalog, and technical documentation applies to the equipment. For gensets, manufacturer refers to the genset OEM — Cummins, Caterpillar, Kohler, Doosan — not the engine manufacturer, which may be the same company or a different one depending on the platform.
The model number identifies the specific configuration of the genset: output range, engine platform, alternator frame, and sometimes enclosure type. Model numbers follow different conventions by manufacturer — a Cummins C500D5 communicates different information than a Caterpillar XQ500 — but in both cases the model string narrows the parts catalog to the relevant population of units.
The serial number is the specific unit identifier. It’s the number that ties a genset to its build record, warranty history, technical service bulletins, and any recall or field correction notices. When calling for parts or service, providing the serial number gets to the right answer faster than providing the model alone, because a given model may have had specification changes across production years that affect which parts apply.
Write these three down somewhere other than the nameplate. Nameplates corrode, fade, and get painted over. A photo of the full nameplate stored with the service file is the most practical backup.
kW, kVA, and Power Factor: Three Numbers That Work Together
Most generator nameplates show two output figures: kW and kVA. These are not the same number, and the relationship between them matters for how the genset performs under real facility loads.
kW is real power — the actual work being done by the equipment connected to the generator. kVA is apparent power — the total electrical load the generator is supplying, including reactive components from inductive loads like motors, transformers, and HVAC equipment. The ratio between them is the power factor, typically expressed as a decimal (0.8) on the nameplate.
A genset rated 500 kW at 0.8 power factor is rated 625 kVA. The kVA rating is the alternator’s capacity limit. The kW rating is the real power output at the nameplate power factor. Facilities with a high proportion of motor loads — manufacturing plants, water treatment, HVAC-heavy commercial buildings — may draw closer to the kVA limit than the kW limit, which affects how much of the nameplate capacity is actually available for real work.
As ISO 8528-1, the international standard governing generating set ratings and performance, establishes, nameplate ratings are defined under specific reference conditions including ambient temperature, altitude, and power factor. Operating outside those conditions changes actual available output — a relationship explored further in the section on derating below.
Standby vs. Prime vs. Continuous: Why the Rating Type Changes Everything
Generator nameplates show a rated output figure, but they also specify what type of rating that figure represents. This distinction is more significant than most nameplate readers recognize.
A standby rating applies to units intended for emergency backup use — typically no more than 200 hours per year, with utility power as the primary source. Standby-rated output is the maximum the genset can produce under those conditions. Operating a standby-rated genset as a continuous power source overloads the engine and alternator relative to what they were designed and warranted to sustain.
A prime power rating applies to units intended as the primary power source, operating under variable load for unlimited hours. The prime rating is typically 10 to 20 percent lower than the standby rating on the same physical unit, because it represents a sustainable continuous output rather than a maximum emergency output.
A continuous rating is the most conservative — a fixed load that the unit can sustain indefinitely, typically lower still than the prime rating.
| Rating Type | Typical Annual Hours | Load Profile | Nameplate Output vs. Same Engine at Standby |
|---|---|---|---|
| Standby | Up to 200 | Variable, emergency use | Highest |
| Prime | Unlimited | Variable, primary source | 10–20% lower |
| Continuous | Unlimited | Fixed, baseload | Lowest |
The rating type on the nameplate defines what warranty conditions apply, what service intervals are appropriate, and what load the unit can sustain without accelerating wear beyond design expectations. A genset transitioned from standby to prime duty without acknowledging the rating difference is operating outside its nameplate specification.
Voltage, Phase, and Frequency: The Electrical Compatibility Fields
The voltage field on the nameplate specifies the output voltage the alternator is configured to produce. Most North American industrial gensets ship configured for 480V three-phase output, but many alternators can be reconnected for different voltage configurations — 240V, 208V, or dual-voltage output depending on winding design. The nameplate records the as-configured voltage, not the full range the alternator is capable of.
Phase (1Φ or 3Φ) and frequency (60 Hz in North America, 50 Hz in most of the rest of the world) are straightforward but matter for parts compatibility. A three-phase alternator has different internal winding arrangements than a single-phase unit of the same frame size, and the governor and engine control systems are calibrated to the nameplate frequency.
Current (amps) is derived from kVA and voltage — it’s the nameplate’s way of expressing the load the alternator can safely carry in units that electricians and load calculators use directly. This is the number that governs conductor sizing, breaker ratings, and bus connection specifications.
Engine Model and Alternator Frame: The Parts-Ordering Fields
A genset nameplate typically identifies both the engine model and the alternator separately, because they’re manufactured by different companies in most cases and have separate parts catalogs, service intervals, and technical documentation.
The engine model string — a Cummins QSX15, a Caterpillar C15, a Doosan DP180LA — narrows every engine parts inquiry to the correct application. Filter cross-references, injector specifications, governor calibration data, and timing parameters are all engine-model specific. Calling a parts supplier with just “a Cummins generator” adds time to every transaction.
The alternator frame designation identifies the physical size and electrical configuration of the alternator. Stamford, Leroy Somer, Mecc Alte, and Marathon are common alternator brands on North American gensets, and each has a frame designation system that identifies which brushes, AVR boards, bearing kits, and winding specifications apply to the unit.
EPA Tier Rating and Year of Manufacture: Regulatory and Maintenance Planning Fields
The EPA Tier rating tells you which emissions standard the engine was certified to meet at the time of manufacture. This affects which aftertreatment components the engine has — a Tier 4 Final unit has a DPF and potentially an SCR catalyst; a Tier 2 unit has neither — and which emissions compliance obligations apply to the facility operating it.
The year of manufacture matters for maintenance planning in ways the hour meter doesn’t capture. Calendar-based service intervals for coolant, belts, hoses, and electrical components are anchored to the manufacture date, not the hour meter. A genset manufactured ten years ago with 300 hours on it has ten-year-old hoses and ten-year-old battery chemistry, regardless of what the hour meter reads. The nameplate’s manufacture date is one of the most underused pieces of information it contains.
Understanding how site conditions — altitude, ambient temperature — reduce available output from the nameplate figure is the other practical application of nameplate data. The derating calculations that adjust nameplate output for installation conditions start with the rated kW and power factor the nameplate specifies.
Turnkey Industries Uses Nameplate Data to Drive Every Service and Repair Call
Accurate nameplate information is what allows a service team to arrive at a job with the right parts, the correct service documentation, and the specific technical knowledge for that unit rather than a generic diesel genset. Turnkey Industries’ service technicians work from the nameplate data — model, serial, engine, alternator, rating type, tier, and manufacture date — before every service engagement.
- Nameplate data review and documentation as part of every initial service visit
- Parts ordering using engine model and alternator frame designations, not general descriptions
- Service interval planning using both hour meter and manufacture date to capture calendar-based degradation
- Rating type verification to confirm the genset is being operated within its design envelope
If the nameplate on your genset is damaged, faded, or missing, recovering that information before the next service call is worth doing — the serial number alone can often be used to pull the full build record from the OEM. Reach out through Turnkey Industries’ generator repair service to discuss nameplate recovery or to schedule service, or contact the team through the contact page with questions about your equipment’s specifications.
