An exhaust manifold crack on an industrial genset in an enclosed equipment room is not just a maintenance problem. It’s a carbon monoxide source operating at engine operating temperature, in a space where personnel may work during testing or service, with no sensor in most facilities to detect the CO that leaks into the room rather than through the exhaust stack. The manifold on a diesel genset runs through thousands of thermal cycles over its service life, and it eventually fails — either by cracking the casting or by allowing the gaskets at joint faces to blow out. Neither failure produces a fault code. Neither shuts the engine down. Both create conditions that deserve attention before the next outage brings someone into the equipment room while the genset is running.
Exhaust manifold inspection is a straightforward component of any thorough generator preventative maintenance program. It takes minutes, requires no disassembly in most cases, and identifies conditions that are inexpensive to correct when caught during a scheduled service visit and significantly more involved when caught after a crack has propagated or a gasket has fully failed.
What Causes Exhaust Manifold Failure on Diesel Gensets
The exhaust manifold on a diesel genset collects combustion gases from all cylinders and routes them into the exhaust system. It operates at exhaust gas temperatures that can reach 800 to 1,200°F under full load, then cools to ambient when the engine shuts down. On a standby genset cycling through monthly 30-minute tests, this thermal cycle repeats dozens of times per year for the life of the equipment.
The thermal expansion and contraction from each cycle creates stress in the manifold casting and at the joint faces where the manifold bolts to the cylinder head. Cast iron manifolds — common on older and larger industrial platforms — are particularly susceptible to crack formation at stress concentration points: sharp transitions in wall thickness, areas near mounting bolt holes, and at the collector junction where exhaust from multiple cylinders merges. The cracks typically begin as microscopic surface defects and propagate gradually with each thermal cycle.
Manifold gaskets fail through a related but distinct mechanism. The gasket material compresses between the manifold face and the cylinder head at installation torque. Over time, thermal cycling causes the manifold to expand and contract by slightly different amounts than the cylinder head it’s bolted to — the two components are different masses with different temperature profiles. This differential movement works the gasket material, eventually allowing combustion gas to bypass the sealing surface at the joint face.
What an Exhaust Manifold Leak Looks Like in Practice
Exhaust manifold leaks are almost never dramatic. A cracked manifold or failed gasket doesn’t produce a rush of exhaust gas visible in normal operation — it produces a small, continuous leak path that becomes more pronounced under load when exhaust pressure is highest. The signs are subtle and easy to attribute to other causes without a systematic inspection.
- Carbon tracking — black or gray staining radiating outward from a joint face or along a crack line, caused by combustion soot depositing from the leak path
- Oil or coolant residue near exhaust joints — not from the exhaust itself, but because manifold heat causes nearby oil mist or coolant vapor to bake onto surfaces adjacent to the leak
- A faint exhaust odor in the equipment room during operation, detectable without CO measurement but easy to dismiss as normal genset ambient smell
- Tick or tapping sound at engine startup that diminishes as the manifold warms and expands — characteristic of a crack that’s open when cold and partially closes when the casting reaches operating temperature
- Discoloration on the manifold surface near bolt holes or at casting joints that differs from the uniform heat patina on the rest of the manifold
None of these symptoms triggers a fault code. The engine control system monitors exhaust temperature downstream of the manifold, not at the manifold itself, so a leak that reduces exhaust gas flow into the stack doesn’t register as a sensor anomaly. The genset passes its monthly test, the engine sounds fine, and the leak continues.
The Safety Dimension That Makes Exhaust Manifold Condition a Priority
Carbon monoxide from a manifold leak in an enclosed generator room accumulates at a rate determined by the leak size, the room volume, and the ventilation rate. Most genset equipment rooms are not designed or operated as confined spaces with continuous atmospheric monitoring. Personnel entering to check fluid levels, review the control panel, or perform service during a test run may be exposed to CO concentrations that are harmful before they become perceptible by smell.
This is the exhaust system risk that NFPA 37, the standard governing installation and use of stationary combustion engines including emergency generators, addresses through its exhaust system requirements. The standard’s provisions for exhaust piping, sealing, and system integrity are designed to ensure that combustion gases reach the outdoor discharge point rather than leaking into occupied or semi-occupied spaces. A cracked manifold or failed manifold gasket is an exhaust system integrity failure regardless of whether the downstream piping is code-compliant.

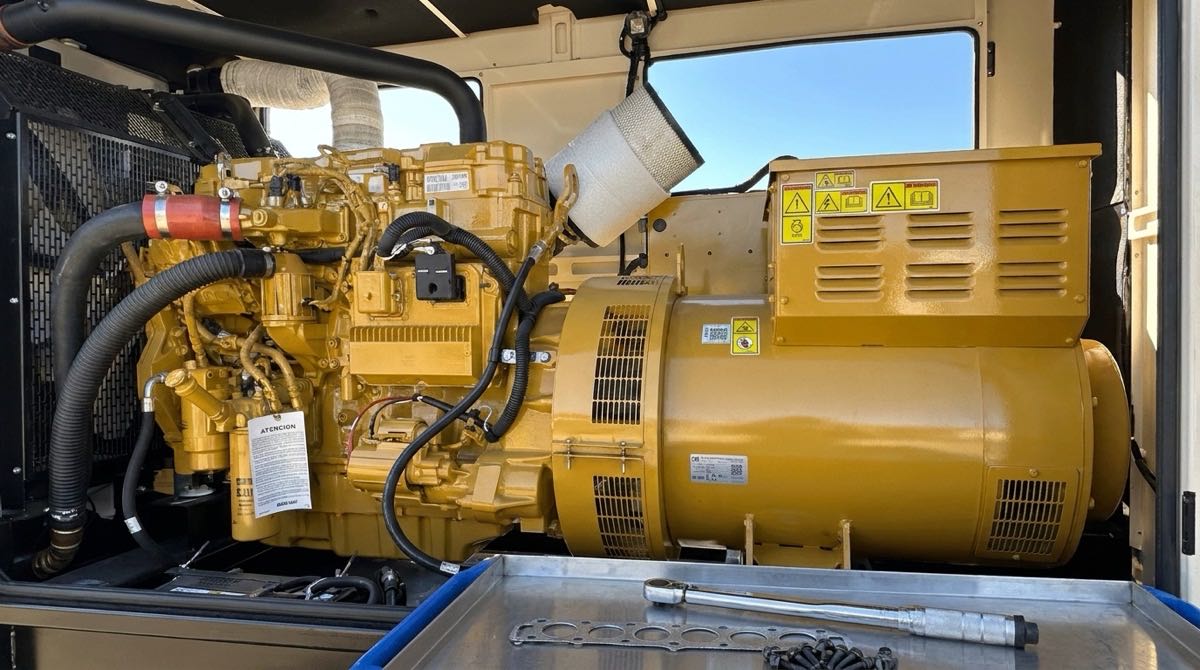

How to Inspect an Exhaust Manifold During a Service Visit
A basic manifold inspection during a scheduled service visit covers four steps and requires no disassembly.
Visual inspection cold: before the engine starts, examine the manifold surface and all joint faces with a flashlight. Carbon tracking at joint faces or along the manifold body, staining patterns that don’t match the surrounding surface, or visible surface irregularities at stress concentration points are all worth documenting and investigating further.
Auditory check at startup: a cold start with the engine bay accessible (follow all safety protocols for proximity to rotating and high-temperature components) allows a technician to listen for ticking or popping sounds at the manifold during warmup. A sound that begins at startup and diminishes as the engine reaches operating temperature is the thermal signature of a crack that closes under heat expansion.
Carbon tracking confirmation under load: after the engine reaches operating temperature, a second inspection of joint faces under load confirms whether a suspected leak path produces visible exhaust staining at the sealing surface. A flashlight aimed at manifold-to-head gasket joints while the engine runs at load makes fresh carbon deposits from an active leak clearly visible.
Smoke test for suspected cracks: where a crack is suspected but not visually confirmed, a professional smoke test — pressurizing the exhaust system upstream of the manifold while the engine is off — reveals crack locations by showing smoke exit points along the manifold surface. This step requires equipment and procedure knowledge beyond a routine service visit but is the most definitive non-destructive method for confirming manifold integrity.
What Inspection Findings Mean for Service Planning
Not every finding requires immediate corrective action. The appropriate response depends on the leak severity, the facility’s use pattern, and whether anyone occupies the equipment room during genset operation.
| Finding | Severity | Recommended Response |
|---|---|---|
| Light carbon tracking at gasket face, no active leak under load | Low — monitor | Document, recheck at next service interval, verify bolt torque |
| Active carbon deposit at gasket face under load | Moderate — schedule repair | Gasket replacement at next scheduled service; verify manifold face flatness |
| Visible crack in manifold casting | High — repair before next load run | Manifold repair or replacement; evaluate CO risk in equipment room |
| Audible tick at cold start, carbon tracking present | High — investigate immediately | Confirm crack vs. gasket failure; prioritize repair before occupied-room operation |
The manifold doesn’t exist in isolation in the genset’s failure history. Exhaust system failures on high-hour industrial diesel gensets frequently involve combinations of manifold, gasket, and downstream exhaust connection issues — a single failed gasket that allowed combustion gas into the equipment room often shares a service event with cracked pipe connections or deteriorated flex sections downstream. The inspection that catches the manifold should evaluate the complete exhaust path.
Turnkey Industries Inspects and Repairs Exhaust Manifold and Exhaust System Issues Across All Major Industrial Genset Platforms
Exhaust manifold inspection requires knowing where to look and what to look for on each specific platform — the stress concentration points differ between a Cummins QSX15 and a Caterpillar C15, and the gasket designs vary enough that a general inspection protocol misses platform-specific failure patterns. Turnkey Industries’ service team includes exhaust manifold condition as part of a complete preventative maintenance inspection across all major industrial genset platforms.
- Visual manifold and gasket face inspection at each service visit, documented in service records
- Cold-start auditory check and load-run carbon tracking confirmation for suspected leak paths
- Gasket replacement with manifold face inspection across Cummins, Caterpillar, Kohler, Doosan, and other major platforms
- Manifold repair and replacement where crack inspection confirms structural failure
A genset with a cracked exhaust manifold is running with a CO source inside the equipment room on every test run. The repair is straightforward when caught during a scheduled service visit. Schedule an exhaust system inspection through Turnkey Industries’ generator repair service, or reach out through the contact page with questions about your equipment’s exhaust system condition.
