Facility managers, maintenance teams, and generator owners rely on the generator control panel to report problems before they become failures. Industrial generators are equipped with advanced monitoring systems designed to detect irregular conditions and notify operators about problems immediately. These systems generate alerts through generator alarm codes, fault codes, and generator warning lights displayed on the control panel. Each error code or warning comes from sensors and electronic control modules that track engine temperature, oil pressure, voltage output, fuel levels, and other operational parameters.
When abnormal conditions are discovered, the generator control system triggers warnings or shutdown codes to prevent equipment damage. Alarm codes provide operators with diagnostic information that helps identify the source of the problem quickly. Knowing how these alerts function improves response time and helps maintain generator reliability during standby or continuous power generation operations.
What Is a Generator Error Code?

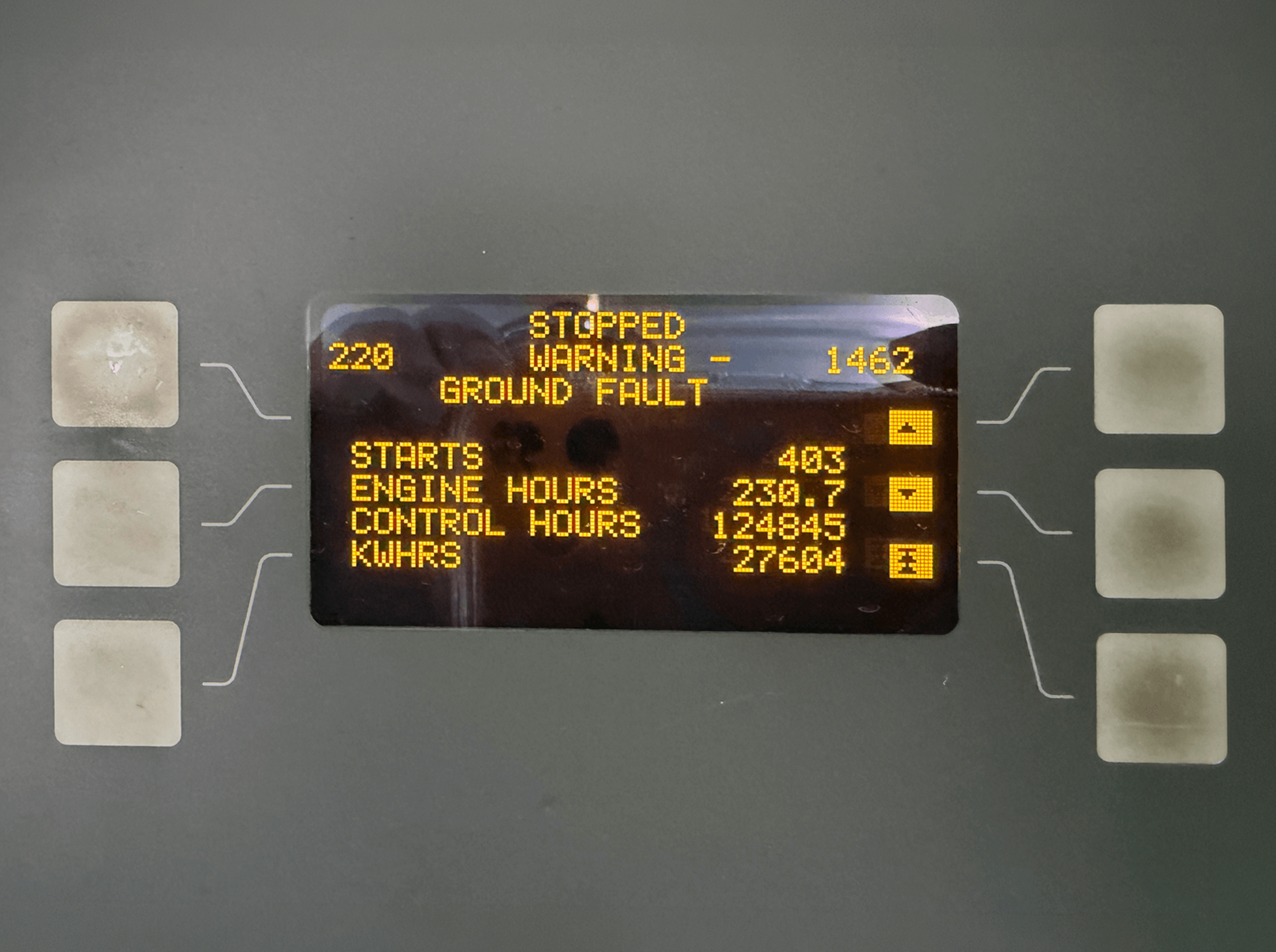

A generator error code is a message the controller shows on the control panel when it detects a condition outside its programmed limits. The unit shows a number, a letter-and-number sequence, or a text message on the display, and the same event is stored in the controller’s fault log. Manufacturers can use the terms error code, fault code, and alarm code differently, so the same event may be labeled one way on one brand and another way on the next. Generator error codes usually fall into three groups:
- Maintenance reminders: scheduled service is due and the generator keeps running.
- Warnings: a developing condition, usually shown by a yellow indicator. The generator keeps running, but the cause needs attention.
- Alarms: a critical condition, usually shown by a red indicator. The controller shuts the engine down to protect it.
The exact meaning of any code depends on the manufacturer and controller model, so the owner’s manual is the first reference for the code on your unit. The common errors below apply across most industrial generator sets.
Generator Monitoring Systems and Alarm Notifications
Modern generator sets rely on digital controllers and engine control modules that continuously monitor performance data. These controllers evaluate inputs from sensors located throughout the generator’s engine and electrical system. If a reading falls outside a safe operating range, the controller activates a generator alarm code or warning indicator.
Many industrial generators use programmable logic controllers that store diagnostic codes in their memory. These fault codes generator alerts remain available even after the generator shuts down, allowing technicians to review system history and identify the exact condition that triggered the alarm.
Typical monitoring components include the following systems:
- Oil pressure sensors
- Coolant temperature sensors
- Battery voltage monitors
- Engine speed sensors
- Fuel level indicators
- Alternator voltage regulators
- Electronic control modules
When readings deviate from programmed thresholds, the controller may issue either a warning alert or an automatic shutdown signal. Warning lights often appear first, allowing operators to correct the issue before equipment protection systems activate.
Generator Warning Lights and Indicator Meanings
Generator warning lights appear on the control panel to signal developing issues. These indicators usually represent the first level of alert before a shutdown code occurs. Each light corresponds to a specific operating condition monitored by the generator control system.
| Warning Light | Typical Meaning | System Component |
| Low Oil Pressure | Engine lubrication pressure is below the safe range | Engine lubrication system |
| High Coolant Temperature | Cooling system temperature exceeding limits | Radiator and cooling system |
| Low Fuel Level | Fuel supply approaching minimum operating level | Fuel tank and fuel pump |
| Battery Charging Fault | Alternator or battery charging failure | Electrical charging system |
| Low Battery Warning | Battery voltage is below the normal range, often from a weak battery or a charging problem | Battery and charging system |
| Overspeed Warning | Engine rotating above rated speed | Engine speed governor |
These generator warning lights may appear as icons or color-coded indicators. Yellow lights generally represent caution conditions and maintenance reminders, while red lights indicate alarms and more severe issues that may require immediate shutdown or service inspection. When a yellow light appears on the control panel, resolve the cause before it escalates to a red alarm. Generator operators should also be familiar with relevant electrical safety standards when responding to critical warning indicators.
Common Generator Alarm Codes In Industrial Units
Alarm codes vary depending on generator manufacturer and controller model, but several alerts appear frequently across many industrial generator systems. These generator alarm codes help technicians identify faults that could affect engine performance, electrical output, or mechanical reliability.
Examples of common alarm conditions include:
- Low oil pressure shutdown
- High engine coolant temperature
- Overcrank condition during startup
- Low battery voltage
- Generator overvoltage
- Generator undervoltage
- Frequency out of range
- Emergency stop activation
A low oil pressure shutdown occurs when lubrication pressure drops below the minimum safe level. This alarm protects engine components such as bearings and pistons from mechanical damage. High coolant temperature alerts often indicate airflow restrictions, radiator blockages, or cooling fan issues. Operators dealing with recurring overheating conditions should inspect the entire cooling circuit before resuming operation.
Overcrank conditions appear when the starter motor attempts multiple engine starts without successful ignition. This may result from fuel delivery problems, air intake restrictions, or battery power limitations.
Some controllers use numeric alarm codes. Generac home standby controllers, for example, display 1100 for overcrank, 1200 for overspeed, 1300 for low oil pressure, 1600 for underspeed, 1900 for undervoltage, and 2100 for overload. When the controller detects high RPM, it triggers an overspeed shutdown. An RPM sense loss alarm, which is in the 1500 series on Generac units, means the controller is no longer receiving a valid engine speed signal and cannot confirm the correct RPM. Industrial generators from other manufacturers use their own code lists, so check the manual for that model before acting on a code from a different brand.
An overload condition occurs when the electrical load on the generator exceeds its rating. Reduce load by turning off non-essential equipment, and use load shedding where the installation includes it, then investigate why the demand rose.
Fault Codes Generator Diagnostics And Troubleshooting
Fault codes generator alerts provide detailed diagnostic information that assists technicians during troubleshooting procedures. Each code corresponds to a specific system condition stored within the generator controller. These codes may appear as numerical sequences or alphanumeric identifiers on the display panel and help identify abnormal engine or electrical behavior.
Technicians typically follow a structured diagnostic process when investigating a fault code. The process often begins with reviewing the controller display, verifying sensor readings, and inspecting mechanical components connected to the affected system. Industrial generator systems are often connected to facility monitoring platforms that track equipment status and alarm notifications. Federal engineering guidance also notes that building monitoring systems may supervise equipment conditions, such as generator operation and system alarms, through integrated monitoring infrastructure, as described in the EPA facilities engineering guidelines.
Common troubleshooting steps include the following procedures:
- Review the control panel fault log
- Verify engine oil levels and pressure readings
- Inspect coolant levels and radiator airflow
- Check battery terminals and charging system output
- Confirm fuel delivery and fuel filter condition
- Evaluate alternator voltage regulation
Perform basic checks first. If the unit shows low oil pressure, confirm the oil level and add oil of the type listed in the owner’s manual before restarting. If the unit shows a low battery warning, check battery voltage and terminals, since battery voltage drops are often caused by a weak battery or a charger problem. A sudden drop in oil pressure, a rising coolant temperature, or an engine that fails to start points to a mechanical or fluid issue and should be inspected before the generator runs again. If the problem persists after these steps, stop and move to the technician steps below.
Many generator controllers also record event timestamps that show exactly when the alarm occurred. This information allows technicians to correlate system faults with operating conditions such as load demand, environmental temperature, or fuel supply changes. By analyzing stored alarm data alongside system performance readings, technicians can identify the root cause of the fault and restore stable generator operation.
Generator Protection Systems And Automatic Shutdown Events
Industrial generators contain built-in protection mechanisms designed to prevent catastrophic engine damage and maintain safe operation. When critical thresholds are exceeded, the generator controller activates automatic shutdown procedures. These shutdown events are triggered by severe generator alarm codes that signal immediate risk to engine components or electrical systems.
Protective shutdown systems continuously monitor parameters such as oil pressure, coolant temperature, engine speed, and electrical output. When abnormal readings appear, the control module isolates the fault and initiates protective actions to prevent mechanical damage or unsafe operating conditions. Industry standards governing emergency power systems also emphasize reliable monitoring and operational safeguards. The NFPA 110 emergency and standby power system standard establishes performance requirements covering installation, operation, maintenance, and monitoring of backup power equipment used in critical facilities.
Examples of shutdown conditions commonly detected by generator protection systems include:
- Extremely low engine oil pressure
- High engine coolant temperature
- Engine overspeed conditions
- Alternator electrical faults or short circuits
- Abnormal voltage or frequency levels
When these conditions occur, the controller interrupts fuel delivery and stops engine rotation to prevent further mechanical stress. This immediate response protects internal engine components and electrical assemblies from severe damage that could result from continued operation during a fault condition.
- Engine crankshaft and bearings
- Pistons and cylinder liners
- Alternator windings
- Voltage regulator assemblies
- Control panel electronics
After an automatic shutdown occurs, technicians typically review stored generator alarm codes and fault logs within the controller before restarting the unit. Identifying the root cause of the shutdown helps ensure the generator returns to stable operating conditions and prevents repeated shutdown events during future operation.
How to Reset a Generator Alarm
Reset steps depend on the controller. On many controllers, the operator places the unit in the OFF position, resolves the cause of the alarm, and then returns the unit to AUTO or manual mode; some controllers use the main menu and enter button to review and clear stored codes. Always follow the reset procedure in the owner’s manual for that model. Clearing a code does not fix its cause, and some alarms cannot be cleared until the underlying condition is resolved. If the same code returns, treat it as an active fault and stop restarting the unit.
When to Call a Trained Technician
Some alarms can be cleared after basic checks, but others need a trained technician. Call for a service call when a red alarm returns after the checks above, when the cause of a shutdown is unclear, or when the code points to an internal problem such as an alternator, wiring, or controller fault. Complex issues like these call for professional assistance because continued restarts can add damage. For brand-specific controller diagnostics, contact an authorized service dealer for that brand. Turnkey Industries also offers industrial generator repair for customers who need further assistance with a stored fault code.
Generator Maintenance And Alarm Prevention Practices
Regular inspection and preventive maintenance reduce the likelihood of generator alarm codes appearing during operation. Many alarms originate from gradual component wear, restricted airflow, contaminated fuel, or missed service intervals. Consistent monitoring of operating conditions helps maintain stable generator performance and prevents unexpected shutdown events triggered by system faults.
Many controllers also display maintenance reminders when scheduled service is due. Completing the service and clearing the reminder keeps the schedule accurate and helps prevent the alarms that follow skipped service. Ignoring routine maintenance can lead to costly repairs and downtime.
Maintenance practices that support alarm prevention include oil analysis, cooling system inspection, and electrical system testing. Proper lubrication plays a key role in protecting diesel generator engines from excessive friction and heat. Industry guidelines such as the American Petroleum Institute engine oil classification standards help determine suitable lubricant categories designed to support heavy-duty diesel engine performance and durability.
Preventive maintenance tasks commonly performed on industrial generators include:
- Engine oil and filter replacement at scheduled service intervals
- Cooling system flushing and inspection of radiator airflow
- Battery voltage testing and charging system evaluation
- Air filter replacement to maintain proper combustion airflow
- Fuel system cleaning and filtration checks
- Load bank testing to verify generator output capacity
When these maintenance activities are performed regularly, the generator control system can operate within stable parameters. Proper servicing helps reduce the appearance of generator warning lights and fault codes while improving long-term equipment reliability across demanding operating environments.
Generator Alarm Codes FAQ
What is a common alarm on a generator?
Low oil pressure, high coolant temperature, overcrank, overspeed, low battery voltage, and overload are among the most common. Each protects the engine or electrical system, and low oil pressure and overspeed typically cause an automatic shutdown.
What are five common faults that can occur in generators?
Five common faults are low oil pressure, overheating, overspeed, undervoltage, and low battery voltage. Together they cover mechanical, fluid, and electrical issues, and each one appears on the control panel as a warning or alarm code.
