Oil consumption that gradually increases between service intervals almost always gets blamed on piston rings or valve seals. Sometimes that’s correct. More often, before those components become the cause, a clogged crankcase breather has been quietly building the crankcase pressure that accelerates the problem. The breather is a small component that does a critical job, gets almost no maintenance attention, and fails in a way that mimics the symptoms of much more expensive engine problems.
It’s one of the more common findings in a thorough generator preventative maintenance inspection, and one of the cheapest problems to fix when it’s caught early rather than after it’s contributed to real engine damage.
What the Crankcase Breather Is Actually Doing
During combustion, a small amount of pressurized gas escapes past the piston rings into the crankcase. This is called blowby. As noted by Solberg Manufacturing, which produces crankcase ventilation systems for stationary power generation engines, blowby gases carry combustion byproducts, water vapor, unburned fuel, and oil mist. If that pressure isn’t vented, it builds inside the crankcase and has to go somewhere.

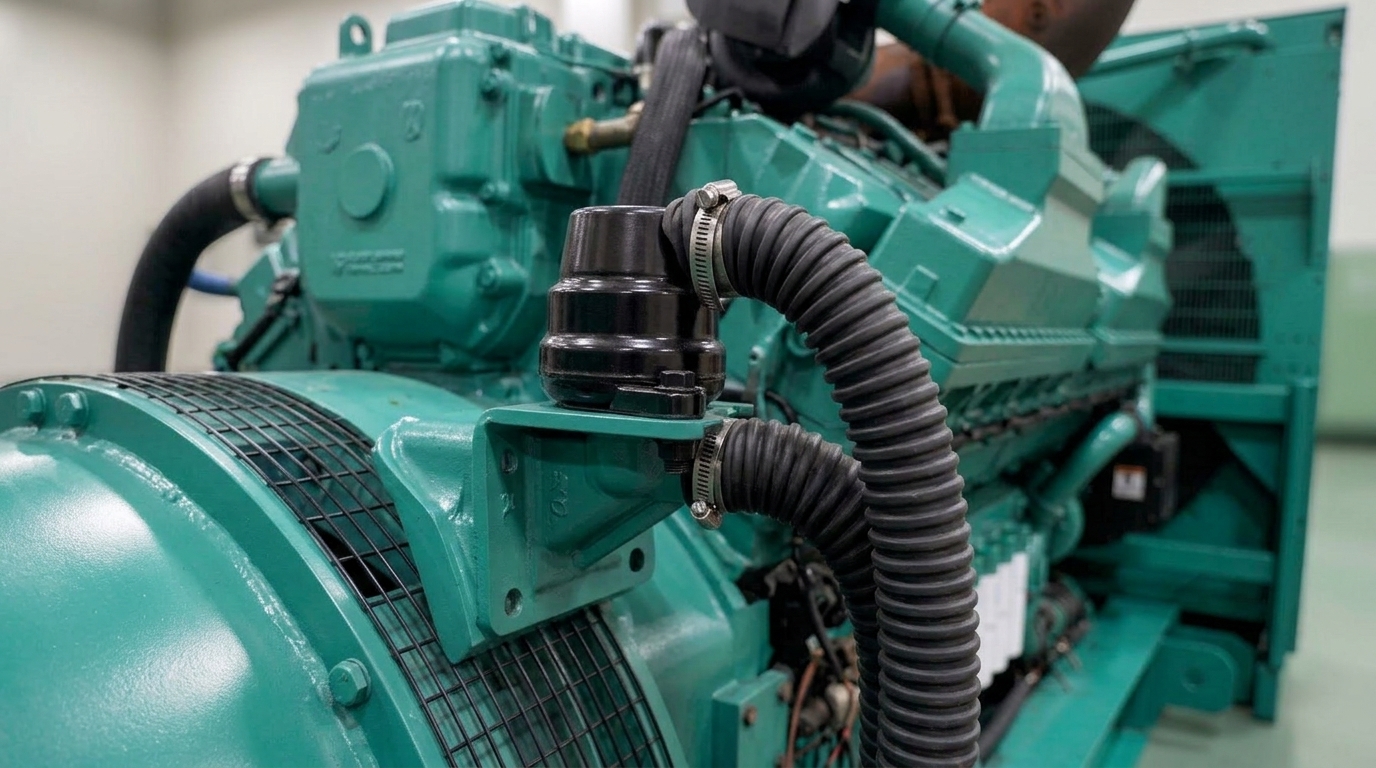

The crankcase breather, sometimes called a crankcase ventilation system or PCV-type filter depending on the engine platform, is what prevents that pressure from building. On open crankcase ventilation systems common on older and larger stationary diesel gensets, blowby vents through a breather filter or tube to atmosphere. On closed systems, it routes back through the intake. Either way, the breather is the pressure relief valve for the crankcase, and when it restricts, the consequences work their way through the entire engine.
How Restriction Develops and Why Standby Operation Accelerates It
The breather element or filter captures oil mist and aerosol particles carried in the blowby stream. Over time it accumulates deposits. On a continuous-duty engine running at full load and operating temperature, this happens gradually and predictably. On a standby genset, the timeline compresses for a different set of reasons.
Low-load test cycles produce more blowby than the same engine running at 70 to 80 percent of rated load. The piston rings don’t seal as effectively at light loads, and combustion temperatures stay lower, leaving more water vapor and unburned fuel in the blowby stream. That moisture-laden blowby deposits into the breather element faster, and it stays there rather than evaporating between runs because the engine never gets hot enough for long enough to burn it off.
The result is a breather that clogs on calendar time rather than operating hours, and does it faster than the service interval typically accounts for.
What Happens When the Breather Restricts
A partially restricted breather starts raising crankcase pressure. That pressure has to vent somewhere, and the path of least resistance is through the engine’s sealing surfaces: the valve cover gasket, the rear main seal, the front crankshaft seal, and the dipstick tube. What shows up first is oil weeping from one or more of these locations. The instinct is to replace the seal. The correct diagnosis is to check the breather first.
If the breather is fully blocked, crankcase pressure rises high enough to push oil past the piston rings in the direction opposite to blowby — from the crankcase into the combustion chamber. Oil burns in the combustion chamber and exits through the exhaust as blue smoke. Oil consumption climbs. The oil analysis shows nothing obviously wrong with the oil itself. The engine runs fine. The consumption problem looks like ring wear, and the diagnosis leads to an expensive internal inspection when the actual fix was a $30 breather element.
| Symptom | Common First Diagnosis | Often Missed Cause |
|---|---|---|
| Oil weeping from valve cover gasket | Failed gasket, replace gasket | Crankcase overpressure from blocked breather |
| Oil weeping from rear main seal | Seal failure, major repair | Crankcase overpressure forcing oil past seal |
| Blue exhaust smoke at startup or under load | Worn piston rings or valve seals | Oil pushed into combustion chamber by crankcase pressure |
| Gradual increase in oil consumption | Internal wear | Oil loss through pressurized crankcase passages |
| Oil fouling on air intake components | Intake or intercooler issue | Saturated breather returning oil mist to intake |
The Diagnostic Step That Most Service Visits Skip
Checking crankcase pressure takes less than five minutes with a simple manometer or magnehelic gauge inserted at the dipstick tube or oil filler cap. Normal crankcase pressure on a healthy diesel genset at operating load is slightly negative to near-zero. Positive pressure during operation is the clearest indication that the crankcase ventilation system is restricted.
Without that check, a service technician doing a standard inspection will note the oil consumption in the service report and flag it for future monitoring. The breather goes unchecked. Oil consumption continues. Six months later, the seals are leaking and someone is now considering a repair that costs significantly more than a breather replacement would have.
Breather condition can also be assessed visually during a service visit on most genset platforms. A saturated element that drips oil when removed, a housing full of sludge, or a vent tube coated in oily residue are all confirmation of restriction. None of this requires specialty tools.
How Breather Service Fits Into an Oil System Maintenance Plan
The crankcase breather should be inspected at every oil change and replaced on a calendar interval regardless of apparent condition. On standby gensets, that interval often needs to be more frequent than the OEM schedule suggests, because the schedule is typically calibrated for a load profile the equipment doesn’t match.
The connection to the rest of the oil system is direct. A contaminated breather element that allows saturated blowby to recirculate through the intake introduces combustion byproducts back into the air charge. Those byproducts end up in the oil and accelerate degradation. That’s one reason skipping or extending oil change intervals on a genset with a marginal breather compounds the damage — the oil is working harder than the analysis results suggest.
Oil filter condition is part of the same picture. A breather-related pressure increase that pushes oil past seals reduces oil volume in the system, which means the remaining oil circulates more frequently through the filter and accumulates contaminants faster. Breather maintenance, oil filter selection and change intervals, and the oil change schedule need to be evaluated together rather than as independent checklist items.
When Breather Problems Indicate Something Larger
A crankcase breather that clogs unusually fast, or that causes persistent positive crankcase pressure even after replacement, is sometimes a symptom rather than the root cause. Excessive blowby production from worn piston rings will overwhelm even a correctly functioning breather system. In that case, a compression test or leak-down test confirms whether blowby volume is within normal range or whether the rings are the actual source of the problem.
The diagnostic path matters here: breather first, then compression if the breather replacement doesn’t resolve the pressure issue. Working in that sequence avoids the cost of internal engine investigation when the answer was a maintenance item that got overlooked at multiple service visits.
Turnkey Industries Diagnoses and Repairs Crankcase Ventilation and Oil System Issues Across All Major Genset Platforms
A breather problem that’s been running undetected for several service cycles often leaves evidence throughout the oil system and around the engine sealing surfaces. Turnkey Industries’ service team evaluates crankcase pressure and ventilation system condition as part of a complete oil system diagnosis, with the experience to distinguish a simple breather restriction from the beginning of a more significant internal wear pattern.
- Crankcase pressure measurement and breather system evaluation at service visits
- Breather element replacement and housing cleaning across major genset platforms
- Seal condition assessment and replacement where crankcase overpressure has caused weeping
- Compression and leak-down testing when blowby volume suggests internal wear beyond the ventilation system
Gradual oil consumption that gets logged and monitored without being diagnosed is money leaving the engine one service report at a time. If your genset is using more oil between intervals than it used to, the crankcase ventilation system is where a competent diagnosis starts. Schedule an evaluation through Turnkey Industries’ generator repair service, or reach out through the contact page if you have questions about what you’re seeing between service intervals.
