A three-phase motor starts up and immediately runs backward. A centrifugal pump spins in the wrong direction and loses prime. A scroll compressor trips on high current within seconds of energization. The generator is running, voltage is present at the terminals, and the wiring looks correct. The problem in each case is generator phase rotation, and it is one of the most commonly missed variables when commissioning three-phase electrical equipment.
Phase rotation is not a generator fault. It is a configuration issue in how the three output conductors are connected to the load, and it has a direct, reliable correction. Catching it before equipment is energized prevents damage that can range from a tripped breaker to a destroyed compressor scroll assembly.
What Does Generator Phase Rotation Actually Mean?
Generator phase rotation, also called phase sequence, refers to the order in which the three AC voltage waveforms produced by a three-phase generator reach their peak values. In any three-phase power system, the alternator produces three separate voltages, typically labeled L1, L2, and L3, that are offset from each other by 120 electrical degrees. These voltages do not peak at the same time. They peak in a repeating sequence, and the order of that sequence is the phase rotation.
There are two possible sequences. The ABC sequence, where L1 peaks first, L2 second, and L3 third, produces a clockwise rotating magnetic field inside a three-phase motor. The ACB sequence reverses the order of L2 and L3, which produces a counterclockwise rotating magnetic field. Nearly all three-phase electrical equipment in North America is designed to operate on the ABC sequence. A generator wired to deliver ACB instead will cause connected motors and rotating equipment to run in reverse or fail to start correctly.
How Phase Sequence Controls Motor Rotation Direction
In a three-phase induction motor, the rotating magnetic field created by the stator windings is what pulls the rotor into motion. The direction of that field is determined entirely by the phase sequence of the incoming power. When the sequence matches the motor’s design, the rotor follows the field in the intended direction. When the sequence is reversed, the field rotates the other way, and so does the shaft.
NEMA MG 1, the industry standard governing AC motors and generators, establishes that the direction of rotation in a three-phase induction motor reverses when any two of the three power leads are transposed. This is precisely why a phase rotation error caused by a transposed conductor connection can affect every motor on the circuit.
For some loads, reversed rotation is immediately obvious. A pump cavitates. A fan moves no air. A conveyor belt pulls product in the wrong direction. For others, the consequences appear more slowly and cause damage before the reversal is identified. The following equipment types are particularly sensitive to incorrect phase rotation:
- Scroll compressors: Reversed rotation destroys the scroll tips within minutes of operation. Many scroll units include internal rotation protection, but not all do, and older units may not respond quickly enough to prevent damage.
- Centrifugal pumps: A centrifugal pump running in reverse produces a fraction of its rated flow and can develop damaging pressure differentials that stress shaft seals and impellers.
- Cooling tower fans and HVAC air handlers: Reversed fan rotation reduces airflow and can cause overheating in equipment that depends on continuous airflow for cooling.
- Machine tool spindles and conveyor drives: Reversed rotation in machining applications can cause workpiece collisions, scrap production, or mechanical damage before the problem is identified.
What Causes Reverse Phase Rotation in the Field?
Reverse phase rotation is rarely a defect in the generator. It almost always results from how the output conductors are connected between the generator and the load. Three situations account for most field occurrences.
The first is incorrect initial wiring during commissioning. When the output conductors are run from the generator to the distribution panel or transfer switch, the installer may connect them without verifying phase sequence first. If the labeling convention at the generator terminals does not match the labeling convention at the load connection point, the phase sequence at the load may be reversed. A structured generator installation checklist that includes phase rotation verification prevents this class of error entirely.
The second is undocumented rewiring or terminal relabeling. Generators that have been rebuilt, moved between facilities, or reconnected after extended storage may have output terminal labels that were changed at some point without documentation. A unit that delivered correct phase rotation at its previous location may deliver reversed rotation at the new site because the load-side labeling differs.
The third is reconnection after maintenance or repositioning. On industrial job sites and in facilities where multiple trades are working, generator output cables are sometimes disconnected and reconnected during other work. A single transposed conductor between the generator and the panel reverses the phase sequence at every load on that circuit.
How to Test Phase Rotation on a Three-Phase Generator

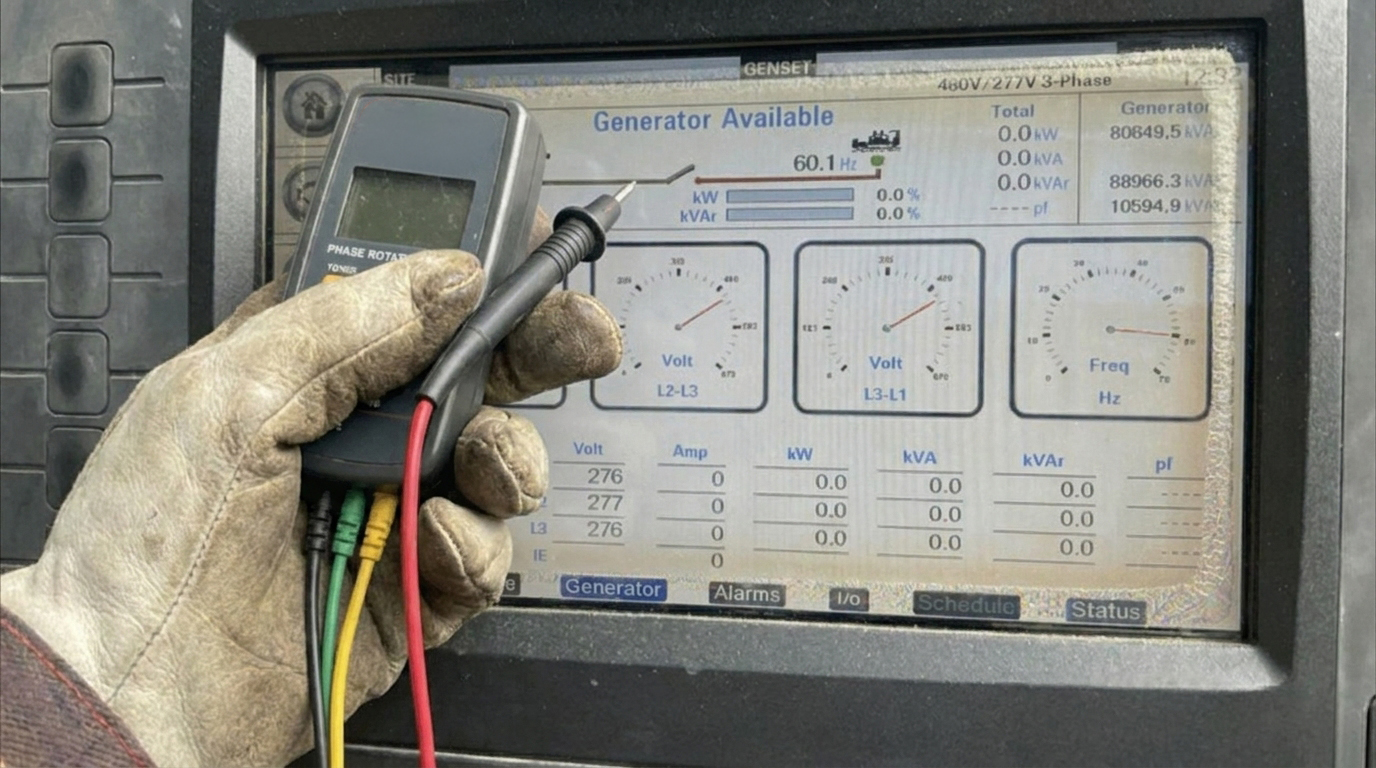

Testing generator phase rotation requires a phase rotation meter, also called a phase sequence tester. This instrument connects to all three output phases simultaneously and identifies whether the sequence is ABC or ACB. A standard multimeter cannot measure phase sequence. It can confirm voltage levels on each phase, but it has no ability to detect the order in which those voltages peak.
Phase rotation meters are compact, widely available, and straightforward to use. Most display the sequence using a rotating disc mechanism, LED indicators, or a digital readout showing clockwise for ABC and counterclockwise for ACB. The basic procedure for testing a generator’s phase rotation follows these steps:
- Start the generator and confirm stable voltage and frequency at the output terminals before connecting any loads.
- Connect the three leads of the phase rotation meter to L1, L2, and L3 at the generator output terminals or at the load connection point where sequence verification is needed.
- Read the meter result and confirm whether the sequence is ABC or ACB.
- Compare the generator’s sequence to the sequence expected by the connected equipment or the existing facility electrical system.
The entire test takes less than two minutes. Under NFPA 70 Article 700, connection points used for temporary or portable generator hookups in emergency systems are required to be marked with phase rotation and system bonding requirements. Phase rotation verification should be a standard step in any three-phase generator commissioning checklist, particularly when connecting to an existing facility that already has operating three-phase equipment.
Correcting Reverse Phase Rotation the Right Way
Once incorrect phase rotation is confirmed, the correction is straightforward. Swapping any two of the three output conductors at the connection point reverses the phase sequence. Only two conductors need to be exchanged. Swapping all three does not correct the rotation. Swapping just one conductor does not correct it either. The fix requires exactly two conductors transposed at a single point in the circuit.
Where to Make the Correction
The correction can be made at the load-side connection, typically at the distribution panel input or the transfer switch, or it can be made at the generator output terminals. Making the correction at the load side is generally preferred when the generator is already running and the test was conducted at the panel, since it keeps all work on the de-energized load side of the connection. Whichever location is used, the circuit must be properly isolated and the work must follow established generator grounding and neutral bonding requirements. All switching and connection work should be performed by a qualified electrician.
On generators with accessible output terminal blocks, some electricians prefer to transpose two leads directly at the alternator output terminals. This approach is valid when the terminal configuration allows it and the generator is offline. The result is the same regardless of where the swap is made: the phase sequence at the load is reversed from ACB to ABC.
Phase Rotation in Parallel Generator Configurations
Phase rotation becomes especially critical when two or more generators are operated on a shared bus. Before any synchronization attempt, all units must deliver the same phase sequence, the same voltage, and the same frequency. Mismatched phase sequences on a parallel bus can generate severe fault currents at the moment of paralleling, potentially damaging the generator, the switchgear, and connected loads simultaneously.
When commissioning a parallel generator system, each unit should be tested individually with a phase rotation meter before any parallel operation is attempted. If sequences are mismatched, the two-conductor correction should be made on one unit before proceeding. Synchronization should only begin after phase sequence, voltage, and frequency have all been verified to match across every unit in the system.
